Description

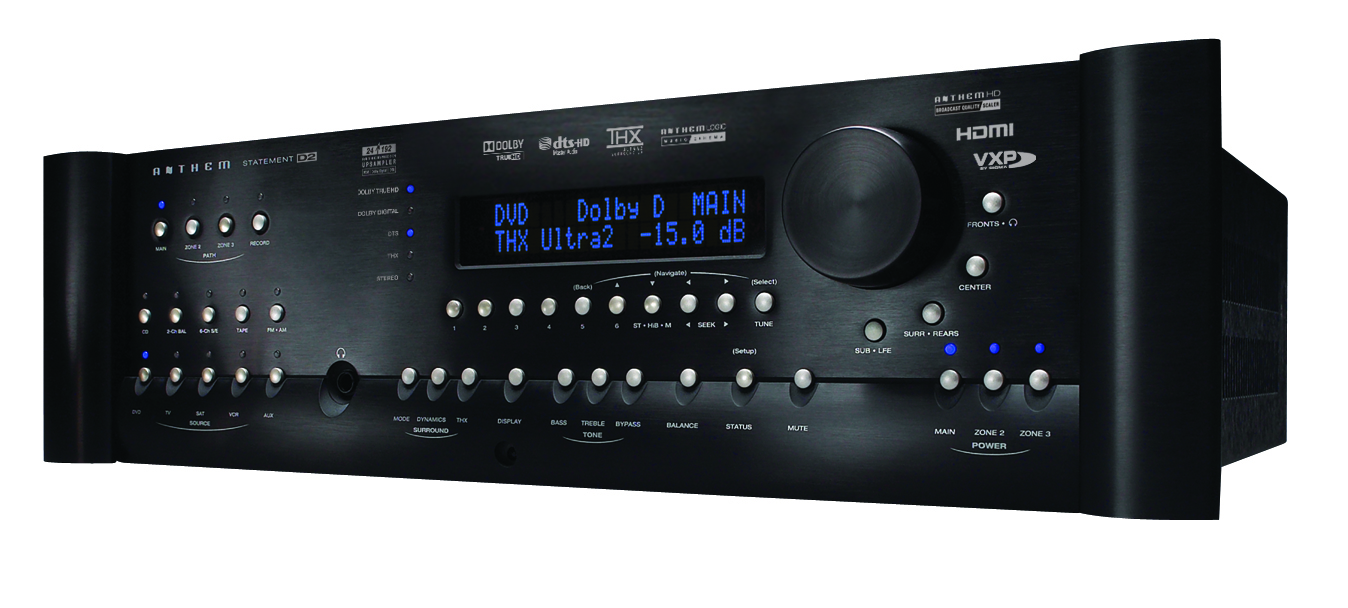

Anthems Statement D2v3D är flaggskeppet hos Kanadensiska Anthem/Paradigm. D2v är fullproppad med state-of-art komponenter och har en spec som tål att jämföras med vilken konkurrent som hest. En processor som ger dig upplevelse med bild och ljud i världsklass!
Specifikationer
| VIDEO SWITCHING | ||
| Bandwidth From Input To Output Jack (bypass mode for component video) | ||
| Composite And S-Video |
70 MHz |
|
| Component | Y |
110 MHz |
| Pr |
90 MHz |
|
| Pb |
80 MHz |
|
| All analog video inputs and outputs are 75 Ω, 1.5 Vp-p. | ||
| ANALOG AUDIO | ||
| Input Impedance |
20 kΩ |
|
| Output Impedance | Main-RCA |
300 Ω |
| XLR |
600 Ω |
|
| Zones 2/3 and Record |
51 Ω |
|
| Rated Input |
2.0 Vrms |
|
| Maximum Input |
5.3 Vrms |
|
| Minimum Load |
5 kΩ |
|
| Rated Output (100 KΩ Load) |
2.0 Vrms |
|
| Maximum Output | RCA |
6.3 Vrms |
| XLR |
12.6 Vrms |
|
| Headphone Output |
100 mW into 32 Ω at 0.2% THD+N |
|
| Volume Control Range | Main |
– 95.5 dB to +31.5 dB (in 0.5 dB increments) |
| Zone 2/3 and Headphone |
– 62.5 dB to +10.0 dB (in 1.25 dB increments) |
|
| Crosstalk (At 1 KHz) |
82 dB between channels; 86 dB between inputs |
|
| XLR Pin Configuration |
Pin 1: Ground, Pin 2: Positive, Pin 3: Negative |
|
| DIGITAL AUDIO | ||
| Crossover | High-Pass Slope (small speaker setting) |
12 dB/octave (2nd order) |
| Low-Pass Slope (subwoofer) |
24 dB/octave (4th order) |
|
| Frequency (adjustable) |
25 Hz to 160 Hz (in 5 Hz increments) |
|
| Tone Control | Fliter Type |
Shelf |
| Range |
+/- 12 dB |
|
| Bass Turnover Frequency |
200 Hz |
|
| Treble Turnover Frequency |
2 kHz |
|
| Analog-To-Digital Conversion S/N Ratio (At Digital Rec Output) (IEC-A Filter) |
100 dB |
|
| All digital audio inputs and outputs comply with HDMI, S/PDIF or AES/EBU standards. Sample rate converter output is 24 bit/192 kHz regardless of input. | ||
| MAIN PATH (RCA AND XLR OUTPUTS) | ||
| Frequency Response And Bandwidth | Analog Direct Inputs |
10 Hz to 20 kHz (+0 -0.2 dB), 1 Hz to 130 kHz (+0 -3 dB) |
| Analog-DSP Inputs at 24/96 |
10 Hz to 20 kHz (+0 -0.3 dB), 2 Hz to 44.1 kHz (+0 -3 dB) |
|
| Digital Inputs at 24/96 |
10 Hz to 20 kHz (+0 -0.2 dB), 1 Hz to 45 kHz (+0 -3 dB) |
|
| THD+N (At Rated Input And Output) | Analog Direct Inputs |
0.006% (80 kHz BW) |
| Analog-DSP Inputs at 24/48 or 24/96 |
0.004% (AES17 Filter) |
|
| Digital Inputs at 24/48 or 24/96 |
0.004% (AES17 Filter) |
|
| IMD (CCIF At 15 KHz And 16 KHz) | Analog Direct Inputs |
<0.001% |
| Analog-DSP Inputs at 24/48 |
0.001% |
|
| Digital Inputs at 24/48 or 24/96 |
0.001% |
|
| S/N Ratio (Ref. 2.0 Vrms, IEC-A Filter) | Analog Direct Inputs |
107 dB |
| Analog-DSP Inputs at 24/48 or 24/96 |
101 dB |
|
| Digital Inputs at 24/48 or 24/96 |
104 dB |
|
| ZONE 2 AND ZONE 3 PATHS | ||
| Frequency Response And Bandwidth |
20 Hz to 20 kHz (+0 -0.1 dB), 3 Hz to 140 kHz (+0 -3 dB) |
|
| THD+N (At Rated Input And Output) |
0.06% (80 kHz BW) |
|
| IMD (CCIF At 15 KHz And 16 KHz) |
0.06% |
|
| S/N Ratio (Ref. 2.0 Vrms, IEC-A Filter) |
97 dB |
|
| FM TUNER | ||
| Sensitivity | 50 dB S/N |
13 dBµ typical, 25 dBµ max. |
| IHF |
10 dBµ typical, 20 dBµ max. |
|
| S/N Ratio | Mono |
75 dB typical, 65 dB min. |
| Stereo |
69 dB typical, 60 dB min. |
|
| Distortion | Mono |
0.2% typical, 1.0% max. |
| Stereo |
0.3% typical, 1.5% max. |
|
| Stereo Separation |
40 dB typical, 25 dB min. |
|
| Alternate Channel Selectivity (+/- 400 KHz) |
70 dB typical, 60 dB min. |
|
| Frequency Response |
25 Hz to 15 kHz (+0 -2 dB) |
|
| AM TUNER | ||
| Sensitivity (20 DB S/N) |
49 dBµ typical, 56 dBµ max. |
|
| S/N Ratio |
50 dB typical, 43 dB min. |
|
| Distortion |
0.7% typical, 2.0% max. |
|
| One-Signal Selectivity (+/- 10 KHz) |
24 dB typical, 18 dB min. |
|
| CONTROL | ||
| Infra Red | Carrier Frequency |
38 kHz |
| Maximum 12 V Supply Current |
150 mA |
|
| Maximum Emitter Current |
60 mA per output |
|
| RS-232 Interface | Connection |
DB-9F, straight-wired |
| Pinout (D2v side) |
Pin 2: Tx, Pin 3: Rx, Pin 5: Ground |
|
| Baud Rate |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
|
| Configuration |
8 data bits, 1 stop bit, no parity bits, flow control (RTS/CTS, none) |
|
| Trigger Outputs | Polarity |
tip positive, sleeve ground |
| Maximum Current at 12 VDC |
300 mA between all three triggers |
|
| Sequential Delay |
250 ms |
|
| POWER REQUIREMENT | ||
| Consumption |
Maximum 170 W |
|
| DIMENSIONS | ||
| Height |
5-7/8 inches (14.9 cm) including feet; rack-mounting: 3 rack units without feet |
|
| Width | Standard version |
19-1/4 inches (49 cm) |
| Rack-Mount version |
19 inches (48.3 cm) |
|
| No-Handle version |
17-1/4 inches (43.8 cm) |
|
| Depth |
15-1/4 inches (38.7 cm) |
|
| Weight (unpacked) |
27 lb (12.3 kg) |
|
